Flat Line Scan Telecentric Lenses
Model Comparison
| Model | Magnification | Working Distance(mm) | Max Sensor Size | F-Number | Depth of Field(mm) | MTF30 (Image-side)(lp/mm) | Distortion(%) | Telecentricity(°) | Camera Mount | Total Length(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| LTCA175-43.7-AL | 0.64 | 228 | 28(1.75") | 2.7 | 0.5 | 58.8 | 0.01 | 0.1 | M58 | 232 |

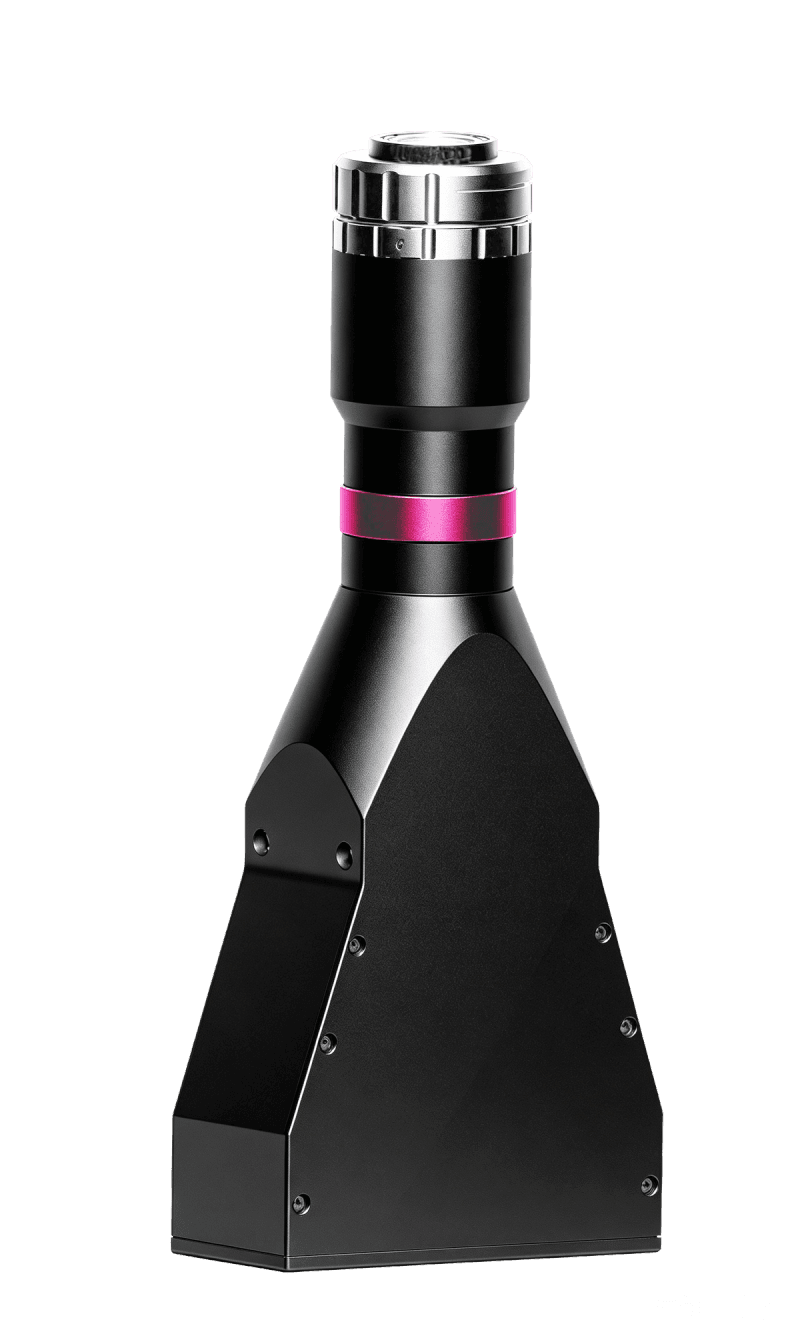

| LTCM111-72-AL | 0.256 | 178 | 18.4(1.1") | 6.2 | ±6.7@F11 | >145 | <0.1 | <0.1 | C | 224.3 |
| LTCM16K-72-M72-AL | 0.819 | 176 | 59 | 17.34 | ±1@F17.34 | >45 | 0.042 | 0.07 | M72 | 352.4 |
