Matrix Bi-Telecentric Lenses
Ultra-high resolution bi-telecentric lenses with FOV(φ) 26–300mm, supporting sensors up to 151MP line-scan, available in C-Mount, M42, M58 and M72.
Model Comparison
| Model | Magnification | Working Distance(mm) | Max Sensor Size | F-Number | Object Resolution(μm) | Depth of Field(mm) | MTF30 (Image-side)(lp/mm) | Distortion(%) | Telecentricity(°) | Camera Mount | Total Length(mm) | Weight(g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTCM150M-110-M72-19.5-AL | 0.615 | 263±4 | 67.6 | 14.5 | — | ±2.3@F22 | >54 | <0.1 | <0.1 | M72 | 548.7 | — |
| DTCM150M-120H-M72-19.5-AL | 0.563 | 273 | 67.6 | 13.3 | — | ±1.7@F13.3 | 69 | 0.05 | 0.05 | M72/19.5mm | 468.8 | — |

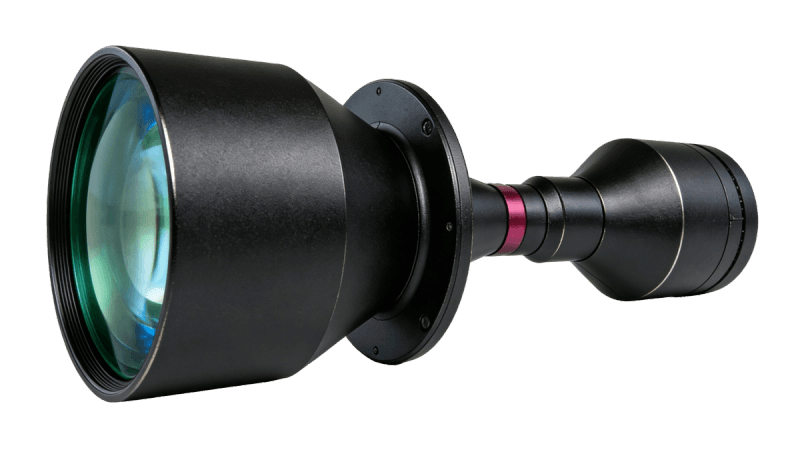

| DTCM150M-135-M72-19.5-AL | 0.5 | 300 | 67.6(150M) | 8 | — | 2.56 | 100 | 0.04 | 0.05 | M72 | 516.9 | — |
| DTCM150M-135-M90-AL | 0.5 | 300 | 67.8(150M) | 8 | 10.736 | 2.56 | 100 | 0.04 | 0.05 | M90 | 524.4 | — |
| DTCM150M-135-T90-M72-19.5-AL | 0.5 | 300 | 67.8(150M) | 8 | 10.736 | 2.56 | 100 | 0.04 | 0.05 | M72/19.5 | 562.5 | — |
| DTCM150M-170-M72-19.5-AL | 0.398 | 318±5 | 67.6 | 9.4 | 15.8 | ±2.4@F9.4 | >88 | <0.05 | <0.05 | M72 | 573.4 | — |
| DTCM150M-170-T90-M72-19.5-AL | 0.398 | 318±5 | 67.6 | 9.4 | — | ±2.4@F9.4 | >88 | <0.05 | <0.05 | M72 | 411.4 | — |
| DTCM150M-190H-M72-19.5-AL | 0.356 | 330±5 | 67.6 | 9.4 | — | ±3.0@F9.4 | >95 | <0.05 | <0.05 | M72 | 600.7 | — |
| DTCM150M-190H-T90-M72-19.5-AL | 0.356 | 330±5 | 67.6 | 9.4 | — | ±3.0@F9.4 | >95 | <0.05 | <0.05 | M72/19.5 | — | — |
| DTCM150M-216-M72-19.5-AL | 0.313 | 372±5 | 67.6 | 7.9 | — | ±6.5@F16 | >100 | <0.03 | <0.05 | M72 | 696.1 | — |
